CR button batteries are ubiquitous tiny power sources found in car key fobs, computer motherboards, smart sensors, medical gadgets and countless portable electronics. Among all types of coin cells, lithium-manganese dioxide based CR batteries have firmly taken the leading position across consumer, automotive and industrial fields. This article dives deep into the strengths of the lithium-manganese system, compares it with competing battery chemistries, and explains why CR button batteries have become the mainstream choice worldwide.
CR batteries are non-rechargeable primary coin cells built with a classic lithium-manganese dioxide chemical system. The code "CR" is an international standard designation: C refers to lithium-based chemistry, and R stands for round button shape. With a fixed nominal voltage of 3.0 V, these compact cells are engineered for low-current, long-standby operation, a feature that perfectly fits the operational needs of most miniature electronic devices.
Unlike early button battery solutions, the lithium-manganese combination boasts stable chemical reactions, mature production technology and balanced cost-performance. After decades of market verification, it has evolved from an alternative option to the most widely adopted battery solution for coin cell applications.
The overwhelming popularity of CR batteries stems from the unique merits of the lithium-manganese dioxide chemistry, which outperforms many other battery systems in multiple key dimensions.
Traditional alkaline and silver oxide button batteries only deliver 1.5 V and 1.55 V respectively. A great number of precision electronic circuits, automotive modules and industrial sensors are designed to run on 3.0 V power supply. The consistent high voltage of CR batteries eliminates the need to combine multiple cells in series, simplifying product structure and reducing assembly costs.
More importantly, lithium-manganese chemistry maintains a flat discharge curve throughout the whole service cycle. The voltage will not drop sharply as power depletes, which prevents intermittent failure, data loss or functional errors in sensitive electronic equipment.
Self-discharge is an inevitable issue for all chemical batteries. The lithium-manganese system features an extremely low self-discharge rate. Under standard room temperature and dry storage conditions, CR button batteries can retain most of their capacity for 8 to 10 years.
This is a decisive edge for devices that remain on standby for most of the time, such as motherboard backup batteries, remote keys and wireless sensors. Users do not need to replace batteries frequently, greatly lowering after-sales maintenance and user trouble. Alkaline batteries, by contrast, usually have a shelf life of only 2 to 3 years, far from meeting long-term standby demands.
Electronic devices work in diverse environments, from cold outdoor spaces to high-temperature vehicle interiors and enclosed equipment. CR lithium-manganese batteries operate reliably across a wide temperature range of -20°C to +60°C.
In low-temperature conditions where alkaline batteries lose most capacity quickly, lithium-manganese cells still maintain steady output. Meanwhile, their chemical structure resists degradation under moderate high temperature, making them adaptable for automotive, outdoor and industrial scenarios that ordinary button batteries cannot handle.
Lithium-manganese dioxide is a chemically stable combination. Paired with a fully sealed metal shell, CR batteries achieve outstanding leakage resistance, compression resistance and impact resistance. During normal use, storage and transportation, risks like electrolyte leakage, bulging and short circuits are effectively controlled.
The production process of CR batteries has been highly standardized and optimized for years. Strict quality control further guarantees consistent safety performance in mass production, which is essential for large-scale application in consumer and industrial products.
Compared with high-end silver oxide batteries used for precision watches and professional measuring tools, CR lithium-manganese batteries have a more competitive price while retaining excellent overall performance. Their raw materials are abundant, and the global production and supply chain is fully mature.
Manufacturers can procure and deploy CR batteries stably at a reasonable cost. This cost-performance balance makes it the preferred solution for mass-produced civilian and industrial electronic products.
To clearly illustrate why lithium-manganese takes the lead, here is a comprehensive comparison with other common coin cell types:
表格
Battery Chemistry | Nominal Voltage | Shelf Life | Low-Temp Performance | Cost | Main Limitations |
|---|---|---|---|---|---|
Lithium-Manganese (CR) | 3.0 V | 8–10 years | Excellent | Medium | Non-rechargeable |
Alkaline | 1.5 V | 2–3 years | Poor | Low | Short lifespan, weak in cold environments |
Silver Oxide | 1.55 V | 3–5 years | Good | High | Expensive, cannot meet 3.0 V voltage demand |
Alkaline batteries are cheap but suffer from short life and poor environmental resistance. Silver oxide cells deliver stable performance but come with a high price tag and incompatible voltage. Only the lithium-manganese system strikes a perfect balance among voltage, lifespan, temperature tolerance, safety and cost, making it the optimal all-round choice.

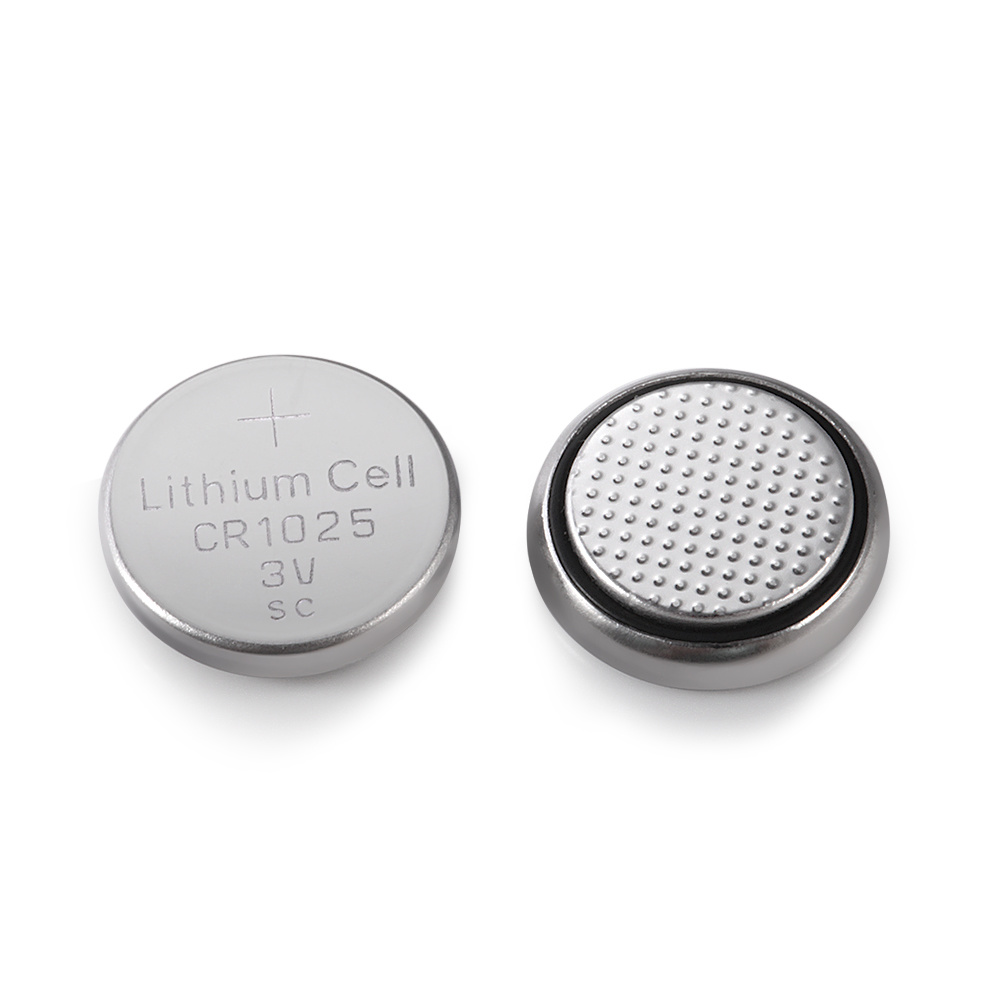

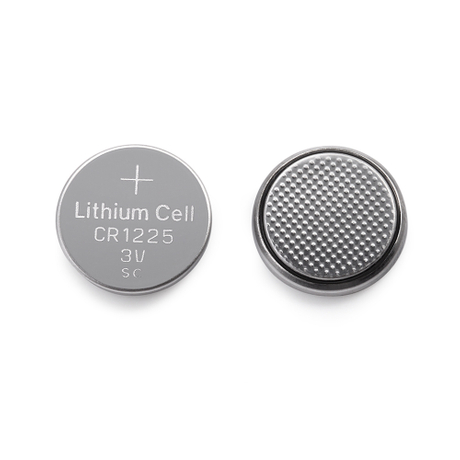

The lithium-manganese system supports a complete series of standardized models. Following the universal naming rule, the four digits after CR represent diameter and thickness. Classic models including CR2032, CR2025 and CR2016 cover different size requirements from standard to ultra-thin devices.
Manufacturers and designers can select corresponding models according to product space, power consumption and endurance needs. Rich and unified specifications accelerate the popularization of CR batteries across all industries, further consolidating its mainstream position.
It should be noted that CR lithium-manganese batteries are disposable primary batteries. They cannot be recharged, disassembled, short-circuited or incinerated, otherwise safety accidents may occur. In addition, they are designed for low-current discharge, so they are not suitable for devices with large instantaneous power consumption.
For daily use, avoid mixing new and old batteries or different types of batteries. Store spare cells in cool and dry places to extend their usable time. Following standard usage rules can fully retain the advantages of the lithium-manganese system.
The rise of CR button batteries is not accidental. The lithium-manganese dioxide chemical system integrates stable high voltage, long shelf life, wide temperature adaptability, high safety and favorable cost-performance into one product. It solves multiple pain points of traditional button batteries and fits the development trend of modern miniaturized, low-power and long-standby electronic devices.
From daily household appliances to automotive electronics and industrial sensors, CR batteries have proven their value in countless scenarios. With mature technology, complete specifications and reliable supply chains, the lithium-manganese system will continue to maintain its dominant status and serve as the primary choice for global button cell applications in the long run.
