Have you ever encountered a dead ultra-thin watch, unresponsive digital compass or inactive portable pedometer? In most cases, the culprit is an exhausted built-in CR1025 coin battery. Many users are confused by various tiny button batteries on the market and often buy mismatched batteries, leading to device failure or circuit damage.
This beginner-friendly guide clearly explains what a CR1025 battery is, lists its core basic specs, and provides step-by-step DIY battery replacement tutorials for three most common daily devices: slim electronic watches, mini digital compasses and portable pedometers. No professional tools or technical skills are required — anyone can finish battery replacement at home easily.

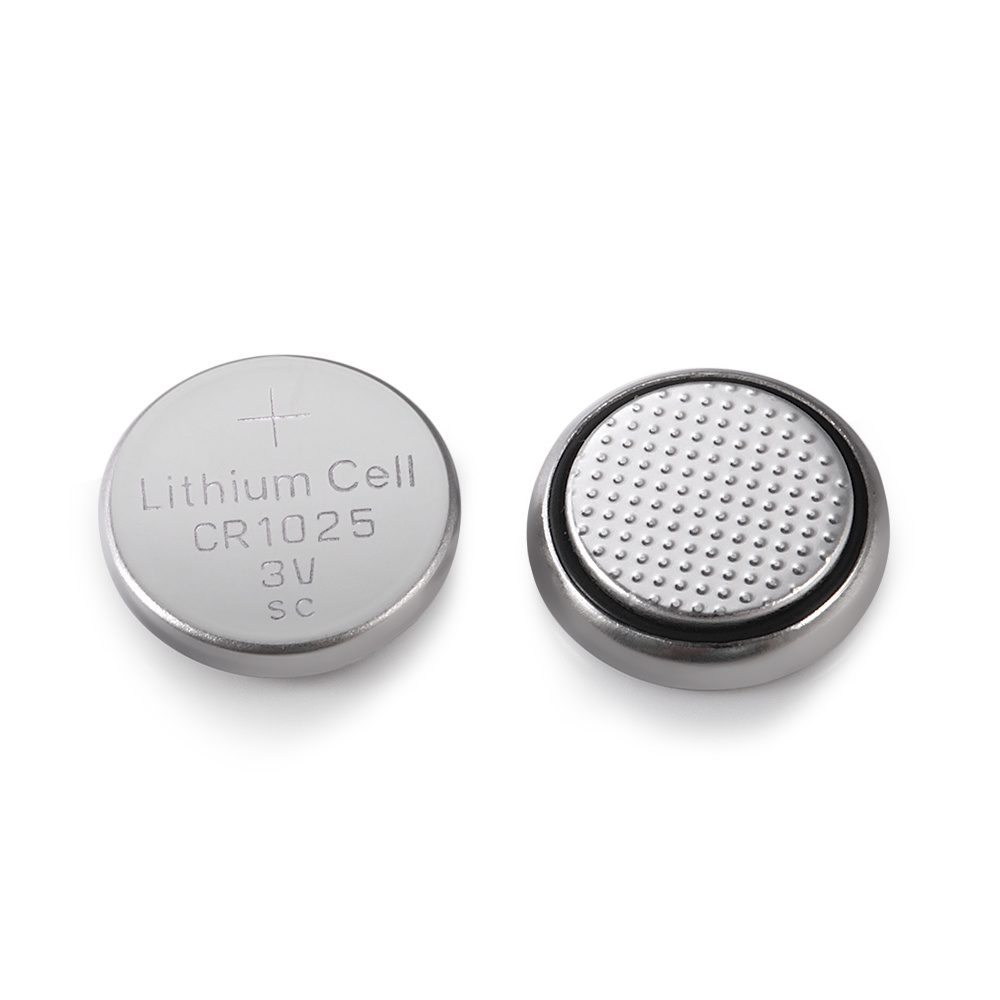

The CR1025 is a universal 3V non-rechargeable lithium manganese ultra-thin coin battery. Following standard coin cell naming rules, its model number directly shows its physical size: 10mm in diameter and 2.5mm in thickness. It is one of the thinnest mainstream 3V button batteries available, specially designed for slim mini electronic devices with narrow internal space.
Nominal Voltage: 3.0V (stable and consistent for low-power electronics)
Nominal Capacity: 30mAh
Shelf Life: Up to 5 years with ultra-low self-discharge
Feature: Flat voltage output, long standby time, leak-proof sealed shell
Unlike larger CR2025 or CR2032 batteries widely used for car keys, the CR1025 is much smaller and thinner. It cannot be replaced by any other coin battery due to size mismatch. Always check the battery code printed on the old cell before purchasing a new one to avoid wrong purchases.
If CR1025 is out of stock, you can choose fully compatible alternatives: BR1025, DL1025 and ECR1025. Never use 3.7V rechargeable LIR1025, as the higher voltage will burn out delicate internal chips of daily portable devices.
Check these typical failure symptoms to confirm battery aging:
Ultra-thin watch: Second hand stops moving, digital screen flickers or goes black suddenly
Digital compass: Slow direction response, inaccurate pointing or automatic shutdown
Pedometer: Failed step counting, blank display, frequent automatic restart
General Preparatory Tools: Plastic tweezers (do not use metal tweezers to avoid short circuit), small flat plastic pry bar, lint-free cloth, isopropyl alcohol (for cleaning metal contacts).
Universal Key Tip: Take a photo of the original battery placement before removal to confirm positive (+) and negative (-) polarity, preventing reversed installation.
Place the watch face-down on a soft cloth to prevent screen scratches.
Gently pry open the watch back cover along the reserved gap with a plastic pry tool.
Locate the built-in CR1025 battery, release the fixed metal battery clip slowly.
Take out the dead battery with plastic tweezers; clean oxidized metal contacts with alcohol cotton.
Put the new CR1025 battery in place following the original polarity (positive side upward in most cases).
Fasten the fixed clip tightly, reinstall the waterproof back cover, and check whether the watch works normally.
Find the hidden battery compartment on the side or back of the portable compass.
Slide or pry open the battery cover without damaging the plastic buckle.
Remove the exhausted CR1025 battery and wipe dust off the contact shrapnel.
Install the new battery correctly; do not squeeze the battery forcibly due to the ultra-thin compartment.
Close the cover tightly, then calibrate the compass direction to finish replacement.
Unscrew the small fixing screws on the pedometer back shell with a mini screwdriver.
Separate the front and back shells carefully, and find the built-in CR1025 battery slot.
Take out the old battery, clean dust and sweat stains on circuit board contacts.
Install the new CR1025 battery steadily, make sure the battery fits closely with shrapnel.
Reassemble the shell and tighten screws, then reboot the pedometer to test step counting function.
Using metal tweezers: Metal tools easily cause battery short circuit, leading to instant power loss or potential safety hazards.
Reversing battery polarity: Wrong positive and negative placement will directly make the device fail to start.
Forcing shell assembly: Extruding ultra-thin batteries may damage internal sealing structure and cause electrolyte leakage.
Ignoring contact oxidation: Dirty or rusty contacts will lead to poor power connection even with a brand-new battery.
Charging CR1025 battery: It is a disposable primary battery; charging will cause swelling and leakage.
Store spare CR1025 batteries in cool and dry places, away from high temperature and humid environments.
Do not mix new and old batteries in one device, which will reduce overall service life.
Dispose of waste batteries through professional battery recycling stations instead of household garbage for environmental protection.
The CR1025 ultra-thin 3V coin battery is a dedicated mini power source tailored for slim portable devices including thin watches, digital compasses and pedometers. Thanks to its tiny size, stable voltage and long standby life, it cannot be replaced by any other common button batteries.
With this simple step-by-step guide, all users can complete battery replacement by themselves without going to repair shops and paying extra service fees. Always confirm the battery model and polarity before installation, and follow standard operating steps to extend the service life of both your batteries and portable electronic devices.
