If you have ever replaced batteries for a car key fob, ultra-thin watch, or miniature electronic device, you have likely encountered the CR1216 battery. It is one of the most common ultra-thin 3V coin batteries widely used in low-power compact electronics. However, most users lack a clear understanding of its battery type, core parameters, interchangeable models, and standardized usage rules. This article comprehensively answers what a CR1216 battery is, sorts out its complete technical specifications, universal replacement counterparts, and critical usage precautions, providing a one-stop reference for daily use, replacement, and product selection.

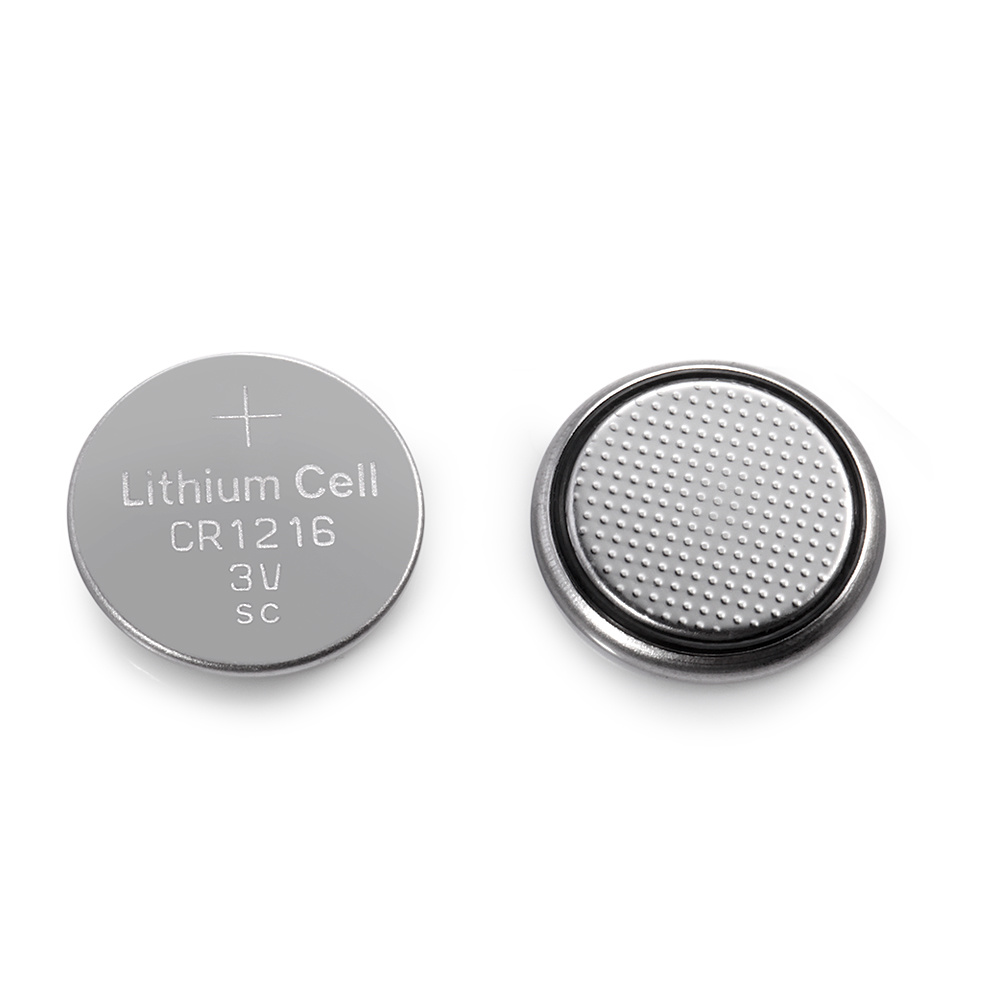

The CR1216 is a non-rechargeable lithium manganese dioxide primary coin battery. Belonging to the classic CR series battery family, it adopts mature lithium manganese dioxide chemical technology, featuring stable voltage output, ultra-low self-discharge rate, and high safety performance.
The model name follows a universal international naming standard for coin batteries: the first two digits “12” represent a battery diameter of 12 millimeters, and the last two digits “16” represent a battery thickness of 1.6 millimeters. Its most prominent feature is the ultra-thin body, which makes it uniquely suitable for slim electronic equipment with narrow internal battery compartments, where thicker coin batteries cannot be installed.
To distinguish the CR1216 from other similar coin batteries, it is essential to master its fixed core specifications. All key parameters are summarized below for quick reference:
Battery Type: Primary disposable lithium manganese dioxide coin battery (non-rechargeable)
Nominal Voltage: 3.0V (stable constant voltage for daily low-current discharge)
Physical Dimension: 12 mm (diameter) × 1.6 mm (thickness)
Typical Capacity: Approximately 25mAh, designed for long standby and low-power operation
Operating Temperature Range: -20°C to +60°C, adaptable to most civilian indoor and outdoor working environments
Shelf Life: 5–8 years under standard dry and cool storage conditions
Core Characteristics: No memory effect, stable discharge, low self-discharge, safe and leak-proof under normal use
Different from high-capacity power batteries, the CR1216 is not designed for high-current operation. Its core positioning is long-term standby power supply for miniature low-power electronic devices.
In daily replacement scenarios, multiple battery models can be perfectly compatible with CR1216. Meanwhile, many lookalike batteries with the same diameter but different thicknesses are non-interchangeable and must be carefully distinguished to avoid installation failure and equipment damage.
The following models have completely consistent size, voltage, and chemical performance with CR1216, supporting direct replacement without any modification to the equipment:
DL1216: A mainstream commercial alternative model with identical parameters, fully interchangeable with CR1216 for all applicable devices.
BR1216: A wide-temperature upgraded version of CR1216. It maintains the same size and voltage while delivering more stable performance in high-temperature and low-temperature environments, ideal for devices with strict environmental requirements.
These batteries share a 12mm diameter with CR1216 but have different thicknesses, resulting in poor contact, inability to close the battery cover, or even equipment failure.Do not replace them arbitrarily:
CR1220: 12mm × 2.0mm, 0.4mm thicker than CR1216, cannot fit ultra-thin battery slots.
CR1225: 12mm × 2.5mm, larger capacity but mismatched size, completely incompatible with CR1216 dedicated equipment.
Although the CR1216 is a tiny and commonly used battery, irregular use and storage will lead to shortened service life, battery leakage, and even potential safety hazards. The key precautions are summarized as follows:
Strictly prohibit charging: CR1216 is a disposable primary battery. Forced charging will cause internal chemical disorder, resulting in battery bulging, electrolyte leakage, or safety accidents such as explosion.
Correct polarity installation: Install the battery according to the positive (+) and negative (-) marks in the battery compartment. Reverse installation will cause device malfunction and damage internal electronic circuits.
Avoid short circuit: Do not place loose CR1216 batteries together with metal products such as coins, keys, and iron sheets. Short circuits will cause rapid battery heating, capacity attenuation, and burnout.
Standard storage conditions: Store unused batteries in a cool, dry, and ventilated environment. Avoid long-term exposure to high temperature, humidity, and direct sunlight to reduce self-discharge and extend shelf life.
Prevent accidental ingestion: The small-sized coin battery is a choking hazard. Keep it away from children and pets. Seek medical treatment immediately once accidental ingestion occurs.
Standard waste disposal: Waste CR1216 batteries contain chemical components. Do not discard them randomly. Please put them into special battery recycling bins to avoid environmental pollution.
In short, the CR1216 is a classic ultra-thin 3V lithium manganese dioxide coin battery, featured by ultra-slim size, stable voltage, and long shelf life. It is widely used in car keys, ultra-thin watches, household mini electronics, and circuit board backup power supplies. When using and replacing, users must correctly distinguish compatible alternative models, avoid misusing thicker batteries such as CR1220 and CR1225, and strictly follow safety usage specifications. Standard selection and use can maximize battery service life and ensure the stable operation of miniature electronic equipment.
